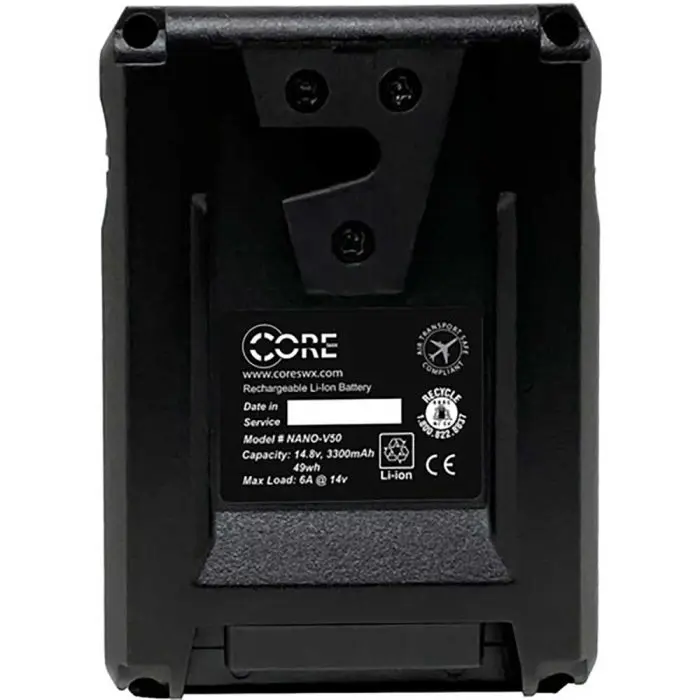

Core SWX NANO Micro 50 Lithium-Ion Battery (V Mount)

Ultracompact, yet powerful, and ideal for devices from cameras to monitors, the V mount NANO Micro 50 Lithium-Ion Battery from Core SWX powers your gear while keeping the weight to a minimum. The battery features 14.8V output to power your professional devices, and it supports up to 6A continuous draw.

The battery provides one unregulated D-Tap output port, and it also features one 5V USB Type-A port to charge smaller devices such as a smartphone. The 4-stage LED gauge shows the battery level status. The NANO Micro can be charged on a Core SWX or most third-party Gold mount chargers, as well as via the D-Tap port.

The Nano Micro 50 is quite possibly the smallest style pack on the market today. Measuring in at less than 4″ in height and 1.5″ in depth, while weighing a feathery 0.8 lbs., the NANO-G50 is the perfect “grab and go” pack for powering on-board monitors, recorders, wireless tx/rx, etc., while still being able to handle lighter camera powering applications like RED Komodo and Canon Cinema builds when utilizing the proper mount plate.

The 14.8v, 49wh capacity allows for the packs to be transported carry-on without restrictions under IATA, ICAO, and UN regulations. The packs have been UN tested and certified, passing UN38.3 certification.

The Core Nano Micro packs feature an on-board unregulated p-tap which can be used to power most 12vdc devices, as well as doubling as a charge input port. The packs also include a 5V, 3A USB for powering/charging mobile devices, and a 4-stage LED gauge to view remaining power.

Specifications
